Bsnl fiber service allow customers to buy their own ONT modem router unlike private fiber broadband provider like jio or airtel where you are provided the ont by isp only. This allows Bsnl customers to buy ONT modem as per their needs like you can buy ONT modem with or without wifi, single band or dual band wifi, single lan port or multiple lan port etc.
The drawback of buying from open market is price are little higher in comparison to what isp charges though you get to own the ont in bsnl while in airtel/jio you need to surrender ont wifi router without any refund.
Bsnl ONT Modem Price List of 2023
- Detect and exchange PON mode automatically Can be used in a wide temperature environment IPv4/IPv6 Stack Support SIP protocol Powerful firewall function
- Type: 4G Routers, 1200 Mbps Speed, Frequency: 5 GHz.;Internal & External Antenna.
- Strong dual band Wi-Fi signal for multi-wall penetration;4x Omni directional antennas for stronger Wi-Fi signal and coverage
- Supports GPON and EPON Optical Networks; FXS port to connect Landline Phones for VoIP calls; 2 LAN Ports for fast ethernet
- Operating System: Routeros; Security Protocol: Wpa2-Enterprise; Control Method: Application
- Security Protocol: Wpa2-Enterprise
- Ultra-fast Wi-Fi Speeds——Up to 3 Gbps dual band Wi-Fi enables faster browsing, streaming, and downloading—all at the same time.
- Boosted Coverage—— Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
- More Connections—— OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
- EasyMesh Compatible——Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
- Gigabit Wired Connections—— 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
- Passive Optical Networks Gigabit Ethernet (GPON Class C +)-Side OLT
- Wavelength: 1490nm Tx/1310nm Rx
- 2.5g Downlink/1.25g Uplink
- 6.5dbm-8dbm
- Compatible With All Except Huawei/Zte/Alphion
- Full speed non-blocking switching.2K MAC address table.64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc. Support auto polarity detection of Ethernet ports (AUTO MDIX). Integrated IEEE802.1p QoS with four level priority queues.Support IPv4 IGMP snooping and IPv6 MLD snooping.Support bridge,
- POTS Service Functions Call protocol: SIP(IMS compatible), seamless compatible with all popular call agent. Integrate heartbeat function and support active/standby call agent. Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length. Support high/low speed fax, bypass fax, and T38 fax.Support high speed MODEM(56Kbps) dial access.Support RFC2833 and redundant RFC2833, difference rings, MD5
- Multi-party conferencing.Line testing according to GR-909.IP address assignment: dynamic PPPoE/DHCP Client and static IP. Support WEB, CLI,IVR,TR069.Call loss less than 0.01%.
- WIFI Service FunctionsIntegrated 802.11b/g/n, 300Mbps, 2T2R.Support 128 connections.Support WEP and WPA/WPA2 security protocols.
- Dual mode ONU Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade etc. Integrated OAM remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features.
- PON Interface: 1XPON Port, SC/PC Single Mode Connector, Tx Optical Power: 0~+4dBm, Rx Sensitivity: -27dBm
- Wavelength: Tx 1310nm, Rx 1490nm, Transmission upto 20KM
- WLAN Interface: Compliant with IEEE802.11g/b/n/ac, WiFi 2.4GHz 2X2 & 5.8GHz 2X2, 5dBi Antennas Rate upto 1.167Gbps, Multiple SSD
- User Interface: 2*GE Autonegotiation RJ45 Ports, 1*POTS RJ11 Connector
- Connect Mode: Support Bridge, Router & Bridge Router Mixed Mode
- 【2.5G ONU】SFP XPON STICK+ Media Converter=2.5G XPON ONU Connect EPON OLT ,it is 1.25G EPON ONU;Connect GPON OLT, it will be like a 2.5G GPON ONU
- 【Maximum Transmission Distance】The maximum distance between the ONU and the OLT is 20 km, and the distance between the network cable and your route is 100 meter.
- 【OLT Compatibility】The ONU is compatible with mainstream GPON/EPON OLT brands in the market. Generally, the OLT can be automatically registered, depending on the functions of the OLT.
- 【Easy to Use】Support MAC/SN/LOID Modify,You can copy the content from the old ONU to the new one through the web management.
- 【What You Get】1*XPON SFP STICK;1*2.5G Media Converter;1*0dB SC/UPC-SC/APC Connector

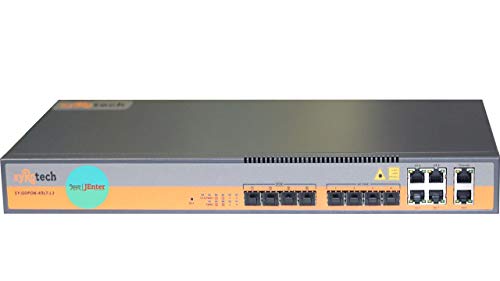

- GOPON-4OLT-L3 provides 4GE(copper).
- 4SFP/4SFP+ slots independent interface for uplink.
- 4*EPON OLTports for downstream.
- It can support 256 ONUs under 1:64 splitter ratio.
GPON ONT stands for Gigabit Passive Optical Network Optical Network Terminal. It is a networking device used in Fiber-to-the-Home (FTTH) or Fiber-to-the-Premises (FTTP) networks to provide high-speed internet, voice, and video services to residential and business customers. GPON is a type of passive optical network technology that uses optical fibers to transmit data over long distances.
Here’s what each part of the term means:
- GPON (Gigabit Passive Optical Network): GPON is a specific type of passive optical network technology that uses a single optical fiber to transmit data at very high speeds. It’s a standardized technology used by many telecommunications providers to deliver broadband services.
- ONT (Optical Network Terminal): The ONT is the customer-side device in a GPON network. It’s installed at the customer’s premises, typically on the outside of a building or inside, and it serves as the interface between the optical fiber network and the customer’s devices. The ONT is responsible for converting the optical signals from the fiber into electrical signals that can be used by devices such as computers, phones, and TVs.
The GPON ONT typically has several Ethernet ports, phone jacks, and sometimes coaxial cable connections, depending on the services being offered by the service provider. It may also have Wi-Fi capabilities for wireless connectivity.
So a GPON ONT is a crucial piece of equipment in a fiber-optic network that allows customers to access high-speed internet and other services over optical fiber connections. It plays a vital role in delivering fast and reliable broadband services to homes and businesses.
